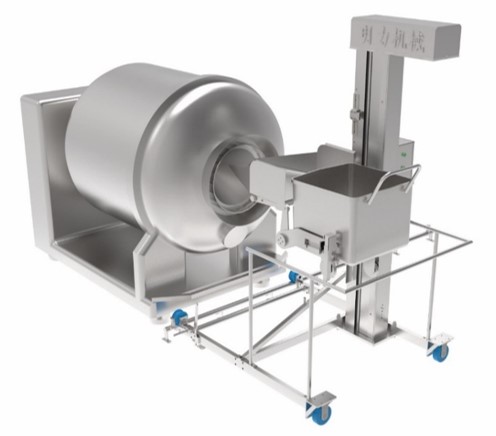

Lift Loader
Applied with high Strength guiding post and safety anti-drop device to make sure no drop risk
Nord Brake reduction motor and Schneider travel limit switch;
Food grade hygiene design, easy to clean and operate
Defined safety area by Safety Guard
With options of fixed style and movable selection
Also can be customized for different trolley and platform loader.
Speed: 1-5m/min or 1-10m/min for options
Capacity: 200L-300L
Motor Effect: 0.75kW
Discharge Height: 1-4meters as customer demand
Lifting height
900 – 1500 mm Adjustable
1650 – 2250 mm Adjustable
2400 – 3000 mm Adjustable
3150 – 3750 mm Adjustable
3900 – 4500 mm Adjustable
Normally 85mm gap to be adjustable, can also be customized.
Double guide post and guide rail
High-strength chain lift
Lift Loader (Vertical Transferring Loader) is being widely used in food (Poultry meat, snack, vegetable), poultry feed, grain and oil, medical, chemical industry, plastic, building material, mine and related industry. Especially in poultry industry, the application of food grade Lift Loader, can complete material uploading and discharge process. Match with grinder, blender, injector, tumbler or uploading transferring system, it can complete the line automation of food processing line.
